IP65-rated Domino Wash launched by Ayrton

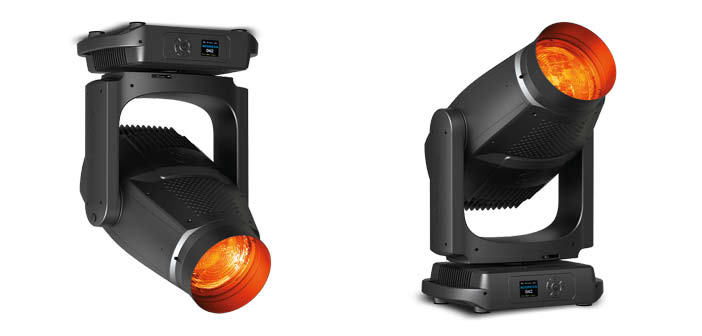

Ayrton has launched its first IP65-rated wash fixture, Domino Wash, a luminaire created for outdoor use. The product is intended to bring new versatility for concerts, performing arts, theme parks, and film shoots.

Domino Wash has a 210mm Fresnel lens with a specific optical structure designed to accurately adapt the diffusion level according to requirements. The company said this optical combination not only favours the use of framing shutter blades or geometric gobos, but improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.

To cover all types of use, Domino Wash is available in three flicker-free versions – S, TC and the entirely new ST or ‘Stage & Theatre’ version. The company shared that the ST version is fitted with a new monochromatic LED source that delivers a light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80.

In common with many other Ayrton fixtures, the ‘Stage’ or ‘S’ version provides a cooler, metallic light with a luminous flux of 52,000 lumens, a colour temperature of 7,000K and a CRI of 70. Ayrton shared that the ‘True Colour’ or ‘TC’ version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6,000K.

Domino Wash’s proprietary optical system delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak. It shares the same complex colour mixing system with Huracán Wash, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2,700K to 15,000K and CRI improvement T.C.S.

Like all Ayrton products, Domino Wash is factory-equipped with full features. These include a four-shutter framing section for accurate shutter cuts across a 100% surface area in all positions; a wheel of seven rotating glass gobos; a 15-blade iris diaphragm; a frost; and an RGB and CMY animation wheel. Domino Wash also has Ayrton’s liquid cooling system fitted with six submersible fans outside its weatherproof enclosure.

Domino Wash is an all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand or dust.

Domino Wash forms a trilogy with Domino Profile and Domino LT, and is the latest addition to Ayrton’s Classical 9 Series range.
